Cross Arm Brackets

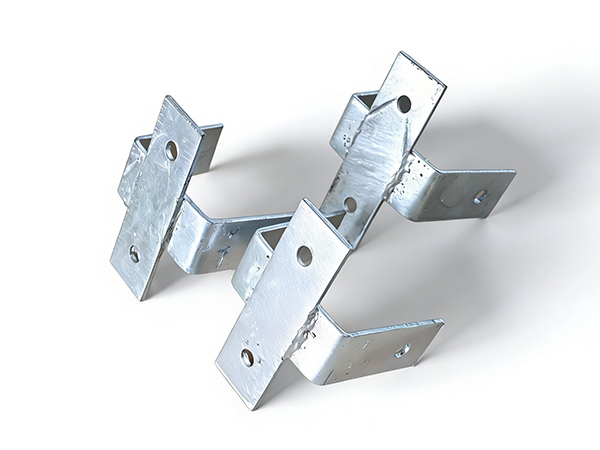

Heavy-Duty Galvanized Steel Cross Arm Brackets

Product Overview

Our Heavy-Duty Galvanized Steel Cross Arm Brackets are precision-engineered structural components designed to provide robust support and stability for utility poles, transmission towers, and telecommunication masts. Manufactured from high-tensile strength steel, these brackets serve as the critical backbone for mounting insulators, conductors, and cable hardware, ensuring the integrity and safety of overhead power distribution and communication networks.

Fabricated using advanced forming and welding technologies, our cross arm brackets undergo a rigorous hot-dip galvanization process. This coating provides a metallurgical bond that offers superior corrosion resistance against harsh environmental elements, including UV radiation, moisture, and chemical exposure. Whether deployed in dense urban centers or remote, corrosive coastal regions, our brackets guarantee a long service life with minimal maintenance requirements.

Superior Material and Construction

The foundation of our cross arm brackets lies in the selection of premium-grade steel. We utilize high-carbon or low-alloy structural steel, chosen for its exceptional yield strength and ductility. This ensures that the brackets can withstand significant mechanical loads, including the tension from heavy conductors, wind loads, and ice accumulation, without deformation or structural failure.

The manufacturing process involves high-precision cutting, bending, and welding to ensure exact dimensional accuracy. This precision is vital for seamless integration with standard utility poles and other line hardware. The edges are deburred and smoothed to prevent injury during installation and to ensure a uniform coating application.

Advanced Hot-Dip Galvanization

Corrosion protection is paramount for outdoor infrastructure. Our brackets are subjected to a comprehensive hot-dip galvanizing process in accordance with international standards. The steel components are cleaned, pickled, and fluxed before being immersed in a bath of molten zinc.

This process results in a thick, durable coating that metallurgically bonds to the base steel. Unlike paint or electroplating, hot-dip galvanization provides cathodic protection, meaning the zinc sacrificially protects the steel even if the coating is scratched or damaged. This ensures decades of protection against rust and oxidation, significantly reducing lifecycle costs for utility companies and contractors.

Versatile Applications

Our Cross Arm Brackets are designed for versatility across various sectors:

• Electrical Power Distribution: Used extensively in overhead transmission and distribution lines to support conductors and maintain necessary phase-to-phase and phase-to-ground clearances.

• Telecommunications: Essential for mounting antennas, waveguides, and fiber optic cable supports on communication towers and poles.

• Railway Electrification: utilized in catenary systems to support overhead contact lines for electric trains.

• Street Lighting: Serves as a mounting arm for high-mast lighting and traffic signal installations.

Design Features and Customization

We understand that infrastructure projects have unique requirements. Therefore, our cross arm brackets are available in various configurations to suit specific load capacities and pole dimensions.

Key design features include:

• Reinforced Gussets: Many models feature triangular gussets welded at the junction of the arm and the pole mount. This significantly increases the moment of inertia, preventing bending under heavy loads.

• Pre-Punched Mounting Holes: To facilitate rapid and error-free installation, our brackets come with pre-punched bolt holes. This eliminates the need for on-site drilling, speeding up construction timelines and ensuring consistent alignment.

• Adjustable Clamps: Compatible with a variety of pole diameters, our brackets can be fitted with adjustable U-bolts or banding systems, ensuring a secure fit on both wood and concrete poles.

Quality Assurance and Standards

Quality is embedded in every stage of our production process. From raw material inspection to final coating thickness testing, we adhere to strict quality control protocols. Our products are designed and tested to meet or exceed major international standards, ensuring reliability and safety compliance for global markets.

We prioritize:

• Tensile Strength Testing: Ensuring the steel meets specified yield and tensile strength requirements.

• Coating Thickness Verification: Using magnetic gauges to verify uniform zinc coverage.

• Dimensional Accuracy Checks: Ensuring every bracket fits perfectly with associated hardware.

Installation and Maintenance

Our Cross Arm Brackets are designed with field practicality in mind. The lightweight yet strong design allows for easy handling by line crews without compromising on structural capacity. The hot-dip galvanized finish is self-maintaining; it does not require painting or additional coatings, thereby reducing long-term operational expenses.

In the event of damage, the modular nature of our bracket system allows for quick replacement, minimizing downtime for critical power or communication lines.

Conclusion

Investing in our Heavy-Duty Galvanized Steel Cross Arm Brackets means investing in the longevity and reliability of your infrastructure. By combining high-strength materials with superior corrosion protection and precision engineering, we deliver a product that stands the test of time. Ideal for utility companies, contractors, and infrastructure developers, our brackets provide the silent, sturdy support that keeps the world connected and powered.
