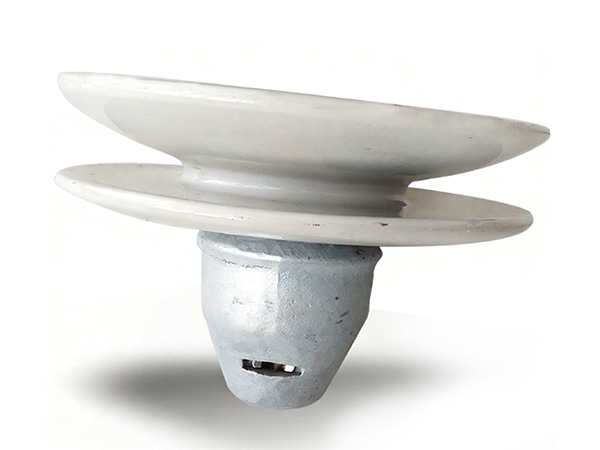

Double-shed Ceramic Insulator

Double-shed Ceramic Insulator – Product Overview

The Double-shed Ceramic Insulator is a high-performance porcelain insulation component widely used in overhead power transmission and distribution systems. It is specifically designed with a double-shed structure to enhance insulation performance, improve pollution resistance, and ensure reliable operation under harsh environmental conditions. This insulator is commonly applied in medium and high-voltage networks where strong mechanical support and excellent electrical insulation are required.

Manufactured from high-quality electrical porcelain materials, the Double-shed Ceramic Insulator is produced through advanced molding, glazing, and high-temperature firing processes. The ceramic body provides outstanding dielectric strength, high mechanical rigidity, and long-term stability. The double-shed design increases the creepage distance, significantly improving its ability to withstand contamination, moisture, and electrical stress.

Key Features and Advantages

One of the primary advantages of the Double-shed Ceramic Insulator is its enhanced pollution resistance. The double-shed structure effectively extends the creepage path, reducing the risk of surface flashover caused by dust, salt, industrial pollution, or moisture accumulation. This makes it highly suitable for coastal regions, industrial zones, and areas with severe environmental conditions.

High electrical insulation performance is another key feature. The insulator effectively prevents leakage current and ensures safe separation between energized conductors and grounded structures. It maintains stable performance under both normal operating voltage and transient overvoltage conditions.

Strong mechanical strength is also a major benefit. The porcelain body is engineered to withstand conductor tension, wind loads, and external mechanical stresses without deformation or failure. This ensures long-term structural stability in overhead line systems.

The product also offers excellent durability and aging resistance. Porcelain material is highly resistant to UV radiation, chemical corrosion, and environmental degradation, ensuring a long service life with minimal maintenance requirements.

Applications

Double-shed Ceramic Insulators are widely used in overhead power transmission and distribution systems for supporting and insulating conductors on pole and tower structures. They are particularly effective in environments with high pollution levels or severe weather conditions.

They are also commonly used in substations, railway electrification systems, and industrial power networks where high reliability and insulation performance are required. In addition, they are suitable for rural electrification projects and urban grid infrastructure.

Manufacturing Process and Quality Control

The manufacturing process involves high-grade porcelain raw materials that are shaped, dried, and fired at extremely high temperatures to achieve superior mechanical and electrical properties. After firing, a glazed coating is applied to improve surface smoothness and enhance pollution resistance.

Strict quality control measures are implemented throughout production, including electrical withstand testing, mechanical load testing, impulse voltage testing, and dimensional inspection. Each insulator is tested to ensure compliance with international standards such as IEC and ANSI.

Customization and Packaging

Double-shed Ceramic Insulators can be customized according to voltage rating, mechanical load requirements, creepage distance, and structural design specifications. OEM and ODM services are available to meet project-specific engineering and branding needs.

Products are typically packaged in reinforced wooden crates or heavy-duty export cartons with protective cushioning to prevent damage during transportation and handling.

Conclusion

The Double-shed Ceramic Insulator is a durable and reliable solution for overhead line insulation in demanding environments. With its enhanced creepage distance, strong mechanical performance, and excellent electrical properties, it ensures safe and stable operation of power transmission and distribution systems. Its robustness and long service life make it an indispensable component in modern electrical infrastructure projects worldwide.
